Choosing the Right Depaneling Tools for Precision and Productivity

At Smart SMT Tools, we know that the final steps of the PCB assembly process are just as important as the first. One of the most critical yet often overlooked processes is depaneling—the act of separating individual circuit boards from a larger panel after soldering. The right depaneling tools can dramatically impact your product quality, throughput, and yield.

In this blog, we’ll explore the types of depaneling tools/fixture available, their applications, and how to choose the best solution for your production environment.

What Are Depaneling Tools/fixture?

Depaneling tools are used to cleanly and safely separate PCBs from multi-up panels or arrays. Depending on the board design and production scale, depaneling can be performed manually, semi-automatically, or fully automated.

At Smart SMT Tools, we provide a variety of depaneling solutions tailored to both traditional FR4 PCBs and delicate substrates like aluminum, ceramics, and flexible circuits.

Why Is Depaneling So Important?

Improper depaneling can lead to:

• Microcracks or stress fractures in solder joints
• Component damage due to mechanical strain
• Board warpage or deformation
• Reduced reliability in field operation

That’s why it’s essential to use the right tool with the right technique.

Types of Depaneling Tools

1. Manual Depaneling Fixtures

Perfect for low-volume production or prototyping, these fixtures use guided blades or supports to help operators snap or cut boards along predefined v-score or breakaway tabs. They’re cost-effective and easy to set up.

2. Circular Blade (Pizza Cutter) Machines

These semi-automatic machines use rotary blades to separate PCBs along v-grooves. They offer consistent results and minimal stress when properly aligned, and are great for mid-volume runs.

3. Punching & Press-Type Fixtures

Designed for tab-routed boards, these tools use a die-and-punch mechanism to shear boards with very little stress. They’re suitable for high-volume applications where speed and uniformity are key.

4. Router-Based Depaneling Machines

Using high-speed spindles and precision bit tools, routers can depanel complex outlines and reduce mechanical stress. They’re ideal for sensitive components, densely populated boards, and irregular shapes.

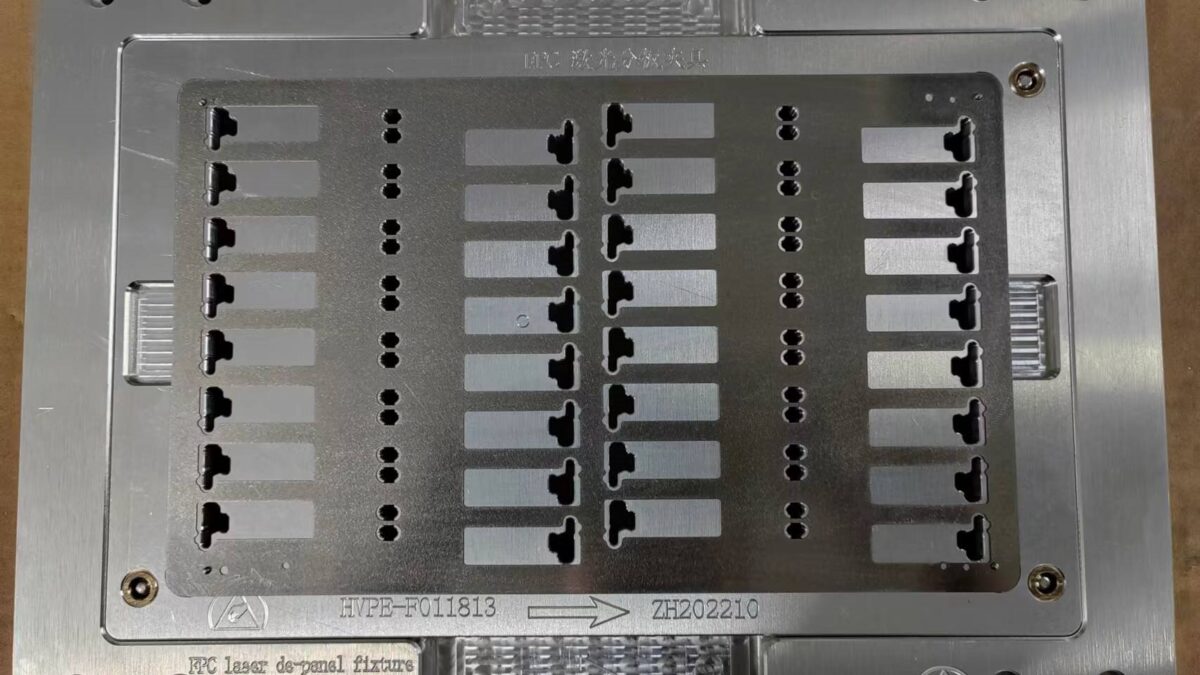

5. Laser Depaneling

For ultra-sensitive or flexible PCBs, laser depaneling offers contactless precision. Though more expensive, it completely eliminates mechanical stress and is used in high-end or microelectronics production.

Key Features of Our Smart SMT Depaneling Solutions

• Custom blade and fixture design for your specific board geometry
• Low-stress handling to protect components and solder joints
• Optional vacuum or ESD-safe configurations
• High durability materials for long-term use
• Compatibility with aluminum-backed, rigid-flex, and ceramic boards

How to Choose the Right Tool

Ask yourself:

• What is the board type (v-groove, tab-routed, flex)?
• Are there components close to the edge?
• What is your production volume?
• Do you need manual, semi-automated, or fully automated operation?
• Is zero mechanical stress required?

Our team will evaluate your board design and help you select or custom-design the optimal depaneling solution—one that ensures speed, safety, and yield. Need a help? please share your Gerber file, PCBA photo, as well as requirements to info@smartsmttools.com, then our team will fully evaluate and provide a detailed solution for you as soon as possible.

Depaneling may be the last step before packaging, but it’s one of the most important in terms of preserving the integrity of your assemblies. At Smart SMT Tools, we’re committed to providing solutions that are not only effective but also gentle on your products.
