We can provide you with flexible and comprehensive process of electronic products like PCB assembly testing machines through our great capabilities, customized particularly to your products' unique requirements.
We can provide you with flexible and comprehensive process of electronic products like PCB assembly testing machines through our great capabilities, customized particularly to your products' unique requirements.
FCT refers to the test method that provides the simulated operating environment to the test target board, so that it can work in designed states to obtain the parameters of each state to verify the function of the UUT. Generally refers to the functional test of PCBA.

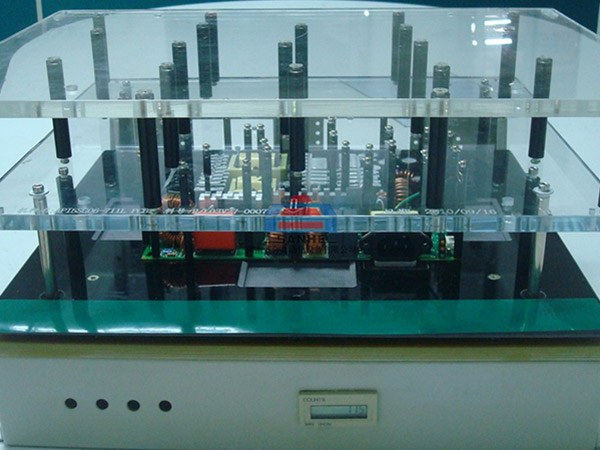

ICT test fixture is to check the manufacturing defects and bad components with a standard test equipment. It is mainly used to check the open, short circuit components as well as a single-line circuit network.
We specializes in the production of high-precision ICT fixtrue for ICT equipment type: TRI, PTI, OKANO, Tescon, Takaya, Hioki, Hibex, Concord, JET, SRC, etc.,
You can choose according to customer’s demand INGUN or QA probe customization of different materials, and do the deformation of the test fixture
PCBA can finish L/C/R/D test without power-on, which can effectively reduce the waiting time for test start-up, and can also reduce the accident of Burn-in Board caused by short circuit. A piece of PCBA board with 300 components can be tested within 3~5 seconds.
The time and error of human operation are greatly reduced by computer control. The operator can easily operate the equipment and replace the test fixture by himself with a little training.
By quick testing, the immediate feedback of problem will pass to the SMT operation on time, reducing non-performing rate, reducing the stock inventory and the accumulation of defective products.
Controlled by computer programs for accurate measurement, the risk of misjudgment and missed measurement can be greatly reduced, as well as the trouble to the production line.
The maintenance work can be done by average operators, effectively reducing personnel costs. ICT can tell problems of any part or Network through the computer program.
With enough test points, ICT can measure all the circuits and parts on PCBA board, even the components on the bypass line can also be tested, which can improve overall product quality.
Please send the PCBGerber file or CAD data, BOM list file, a PCBA sample, and a sample picture of your previous FCT/ICT jig will be quite helpful
That’s depend on your requirement, FR4, bakelite, acrylic, and anti-static material are all available.
INGUN, QA, LH, or Made-In-China pins
FCT jig will take 5-7days to produce; ICT jig will take 1-2 weeks to produce based on its difficulty.
