At Smart SMT Tools, we understand that the final stages of PCB assembly are just as critical as the first. One such crucial step is depaneling—separating individual circuit boards from a multi-up panel. Without proper support, this process can introduce stress that leads to cracked components, lifted pads, or even complete board failure. That’s why we provide precision-engineered PCB depaneling fixtures tailored to your exact requirements.

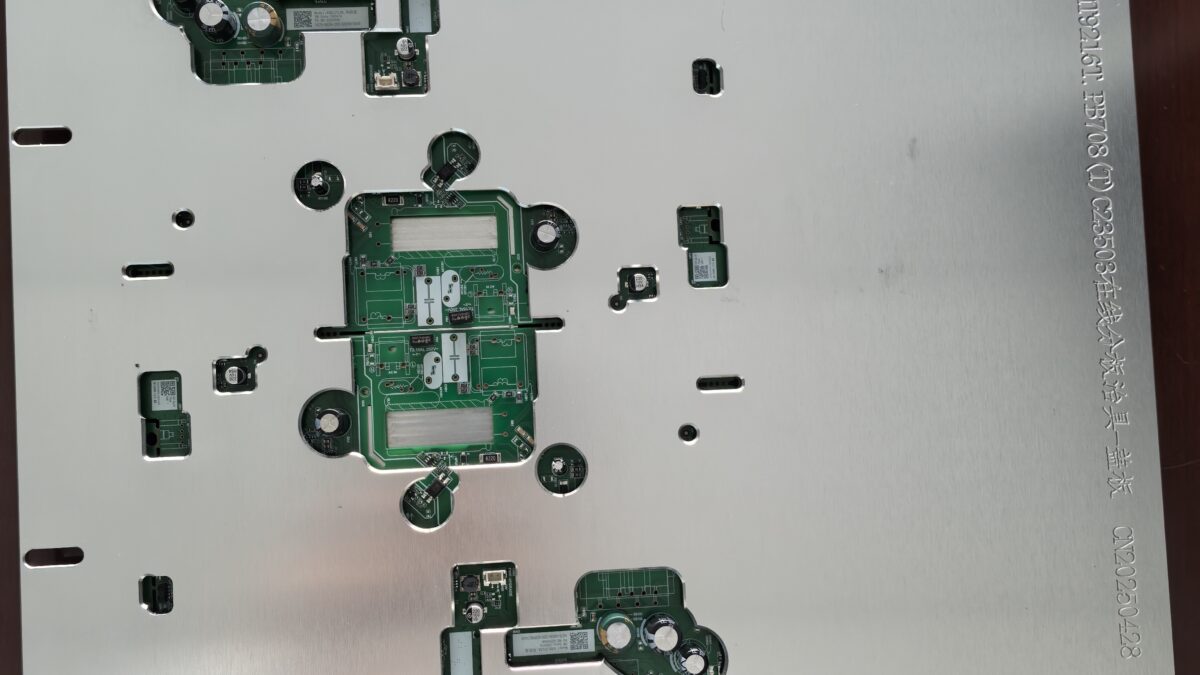

A depaneling fixture (also called a depanel support jig or PCB breaking tool) ensures that each circuit board is separated cleanly and safely. It offers a stable, secure platform to prevent mechanical stress during the cutting or snapping process, especially important for:
Improper depaneling can lead to invisible micro-cracks that may pass testing but fail in the field. Our depaneling jigs eliminate that risk by ensuring precision support and uniform pressure.
We design and manufacture depaneling fixtures that meet the exacting standards of high-volume EMS and OEM production lines. Our fixtures offer:
Our depaneling jigs are used in:
Whether your boards use V-score, tab-routing, or both, we design the fixture around your exact panel file and Gerber layout, ensuring a perfect fit and maximum process safety.
With 17+ years of experience and a monthly output of over 8,000 custom fixtures, Smart SMT Tools has become the trusted tooling partner for EMS providers in over 45 countries. Here’s what sets us apart:
Depaneling may be the last step in your SMT line, but its impact on product reliability is long-term. At Smart SMT Tools, we build depaneling fixtures that protect your boards, enhance yield, and reduce operator variability. If your current process is leading to cracks, stress, or inconsistent cuts, it may be time to upgrade your support system.
Contact us today with your panel drawing or Gerber files, and let us design a depaneling solution that fits perfectly into your production flow.
