In today’s competitive electronics manufacturing industry, the quality of your SMT (Surface Mount Technology) fixtures can have a direct impact on production accuracy and efficiency. At Smart SMT Tools, we understand that selecting the right materials for your SMT fixtures is crucial to ensuring reliable performance and longevity. This guide will help you understand the various materials used in SMT fixtures, their benefits, and how to choose the right one for your application.
Why Material Selection Matters
SMT fixtures are designed to securely hold PCBs during various manufacturing processes such as solder paste printing, reflow soldering, testing, and depaneling. The material chosen for these fixtures directly affects:
- Thermal Resistance: Essential for high-temperature processes like reflow soldering.
- Durability: Determines the fixture’s lifespan under repetitive use.
- Precision: High-precision manufacturing requires materials that maintain tight tolerances.
- Cost-effectiveness: Balancing performance with cost is key to overall production efficiency.
Common Materials Used in SMT Fixtures
1. Aluminum
Characteristics:
- High Strength & Durability: Aluminum offers excellent structural support.
- Good Thermal Conductivity: Ideal for fixtures used in reflow ovens.
- Cost-Effective: Balances performance and price, making it a popular choice for many applications.
Best For:
- Reflow soldering carriers
- Test fixtures that require robust construction
2. FR4 (Fiberglass Reinforced Epoxy)
Characteristics:
- High-Temperature Resistance: FR4 materials can withstand the heat of reflow processes without significant degradation.
- Chemical Resistance: Offers durability when exposed to solder fluxes and cleaning agents.
- Stable Dimensional Properties: Ensures precision over repeated thermal cycles.
Best For:
- Fixtures in reflow ovens
- PCB carriers that require high-temperature stability
3. Durostone
Characteristics:
- Composite Material: Durostone is a glass fiber reinforced epoxy composite, offering the benefits of both fiberglass and resin.
- High Strength & Stability: Exhibits excellent mechanical strength and dimensional stability even under high temperatures.
- Excellent Thermal & Chemical Resistance: Ideal for high-temperature environments, it resists chemical corrosion and maintains its integrity during reflow and wave soldering processes.
- Anti-static Properties: Helps prevent electrostatic discharge (ESD) issues during sensitive SMT operations.
- Machinability: Designed for precision CNC processing, resulting in fixtures with tight tolerances and minimal burrs.
Best For:

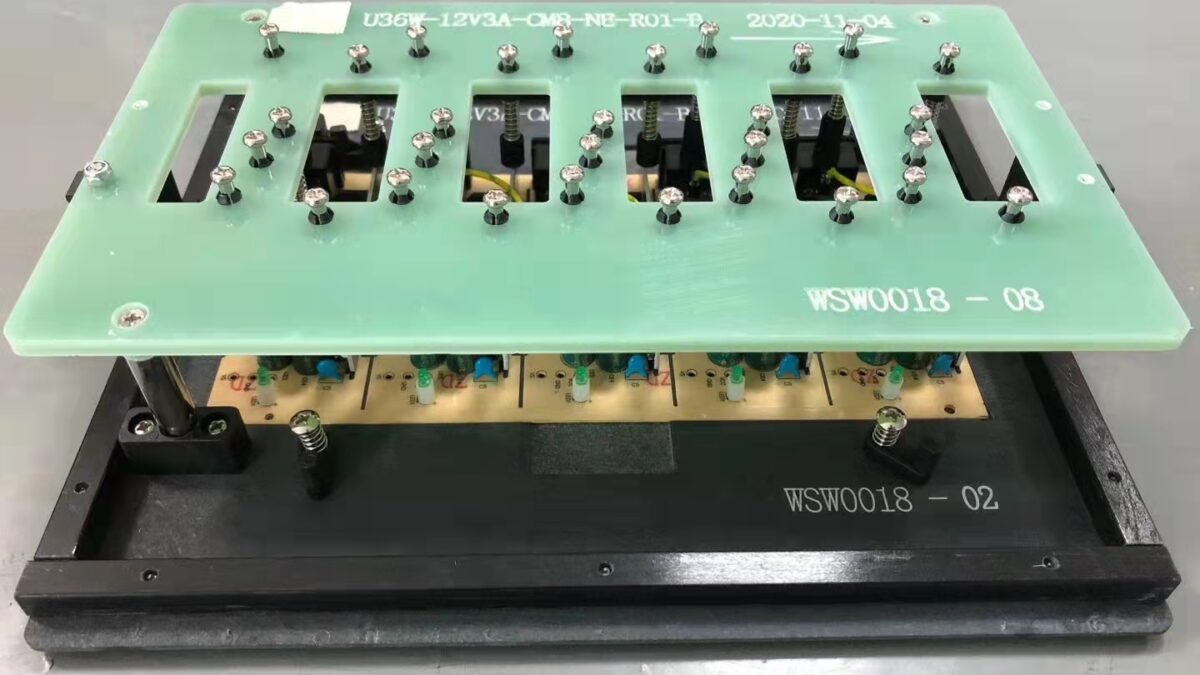

- SMT fixtures and carriers in wave soldering and reflow soldering processes
- Applications requiring high temperature resistance and dimensional stability
4. Stainless Steel
Characteristics:
- Exceptional Heat Resistance: Withstands extreme temperatures without warping.
- High Structural Stability: Provides robust support even under continuous use.
- Corrosion Resistance: Ideal for harsh production environments.
Best For:
- Precision stencil fixtures
- Applications requiring long-term durability
How to Choose the Right Material for Your SMT Fixture
1. Assess Your Process Requirements
- Thermal Exposure: If your fixture is used in high-temperature processes (like reflow soldering), prioritize materials such as FR4, aluminum, or Durostone.
- Mechanical Stress: For fixtures that face frequent mechanical action, materials like beryllium copper, stainless steel, and Durostone provide the necessary durability.
- Electrical Performance: In testing applications where conductivity is important, consider beryllium copper.
2. Consider Production Volume and Cost
- High-Volume Production: Investing in higher-grade materials can reduce maintenance costs and downtime over time.
- Cost Sensitivity: Balance material performance with budget constraints—sometimes aluminum or FR4 offers the best compromise between cost and durability, while Durostone can be the ideal choice for applications where performance at high temperatures is critical.
3. Collaborate with a Trusted Supplier
At Smart SMT Tools, we work closely with our clients to understand their specific manufacturing challenges. Our expertise in material selection ensures that you get customized fixture solutions that improve your production process while remaining cost-effective.
Real-World Benefits of Optimal Material Selection
- Increased Production Efficiency: Durable fixtures reduce downtime and maintenance requirements.
- Enhanced Product Quality: High-precision materials minimize misalignment and improve solder joint reliability.
- Reduced Long-Term Costs: Investing in the right material can significantly lower replacement and repair expenses.
Conclusion
Choosing the appropriate material for your SMT fixtures is a critical step in optimizing your manufacturing process. By understanding the unique properties of materials like aluminum, FR4, beryllium copper, stainless steel, and Durostone, you can make informed decisions that enhance production accuracy, durability, and cost efficiency.
At Smart SMT Tools, our mission is to provide high-quality, customized SMT fixture solutions tailored to your needs. Contact us today to learn more about how our expertise and state-of-the-art materials can help elevate your production process.
Ready to optimize your SMT fixture selection?
Reach out to Smart SMT Tools and let’s solve your production challenges together!
